RabbitMQ Monitoring API

RabbitMQ HTTP monitoring API

RabbitMQ provides an HTTP-based API for monitoring and managing the server. This API is part of the RabbitMQ Management Plugin, which is included with RabbitMQ but might need to be enabled.

If you are using Docker for instance, use the rabbitmq:management image. If you are using a hosted RabbitMQ service like CloudAMQP, the management plugin is usually enabled by default.

The default port for the management API is 15672 and it uses basic HTTP authentication.

curl -u {username}:{password} {hostname}:15672/api/version

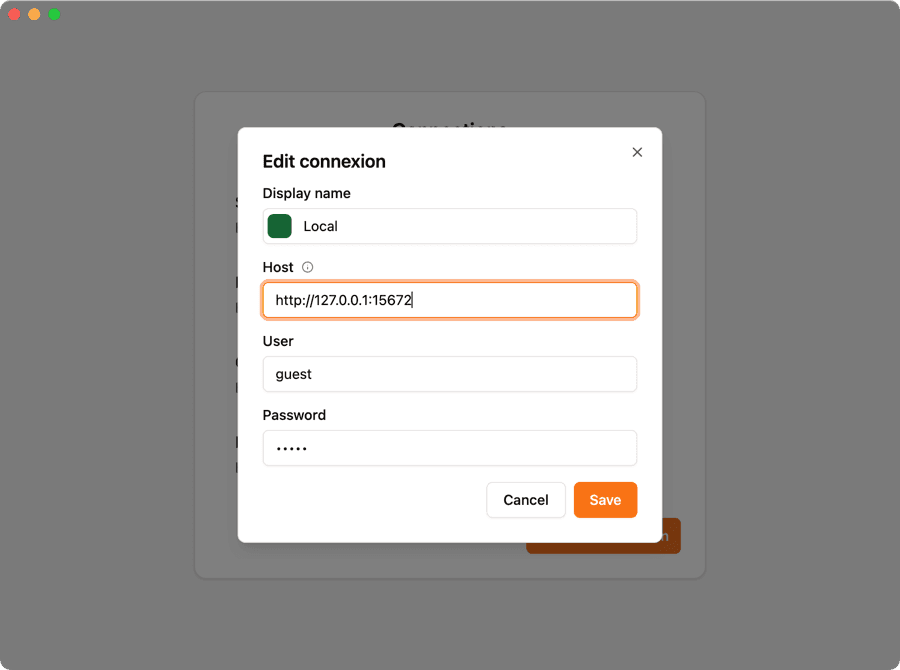

You can use the built-in UI to explore the API at http://{hostname}:15672 or use a dedicated tool like RabbitGUI to interact with the API.

Individual queue metrics

You can query a specific queue using the GET /api/queues/{vhost}/{queue_name} endpoint. Make sure to URL-encode the virtual host and queue name if they contain special characters, most commonly the virtual host is / which should be encoded as %2F.

curl -u {username}:{password} {hostname}:15672/api/queues/%2F/my-queue

Query params

This endpoint has 4 query parameters:

• lengths_age and lengths_incr
• msg_rates_age and msg_rates_incr

These parameters control the time series that are returned. You can adjust this window using the *_age parameters (in seconds) which controls how far in the past you want the data and the *_incr parameters (also in seconds) to specify the increment between two data points. The possible values are limited by your specific configuration, but usually the only valid values are:

• *_age=600 and *_incr=5 for a 10-minute window with 5-second increments
• *_age=3600 and *_incr=60 for a 1-hour window with 1-minute increments

curl -u {username}:{password} "{hostname}:15672/api/queues/%2F/my-queue?lengths_age=600&lengths_incr=5&msg_rates_age=600&msg_rates_incr=5"

Response body

Messages metrics

The response body is a JSON object containering various metrics about the queue. Here are some of the most important ones:

• messages: total number of messages in the queue
• messages_ready: number of messages ready to be delivered to consumers
• messages_unacknowledged: number of messages delivered to consumers but not yet acknowledged
• reductions: number of times the queue has been reduced in size due to message expirations or TTLs

You can get the current value of a metric by simply accessing the corresponding field in the JSON object. For example, to get the total number of messages in the queue body.messages.

For each metric, the response also includes a *_details field that contains the time series data. For example, body.messages_details is an object with those properties:

• avg: the average value of the metric over the specified time window
• avg_rate: the average rate of change (in seconds) of the metric over the specified time window
• rate: the current rate of change (in seconds) of the metric
• samples: an array of data points, each containing a timestamp in milliseconds and sample, the value of the metric at that time

For instance, to get the number of messages over time, you can access body.messages_details.samples which will return an array like this:

[
  {
    "sample": 3,
    "timestamp": 1769254805000
  },
  {
    "sample": 1,
    "timestamp": 1769254800000
  },
  //...
]

This is the information used by RabbitGUI to display the queue metrics over time:

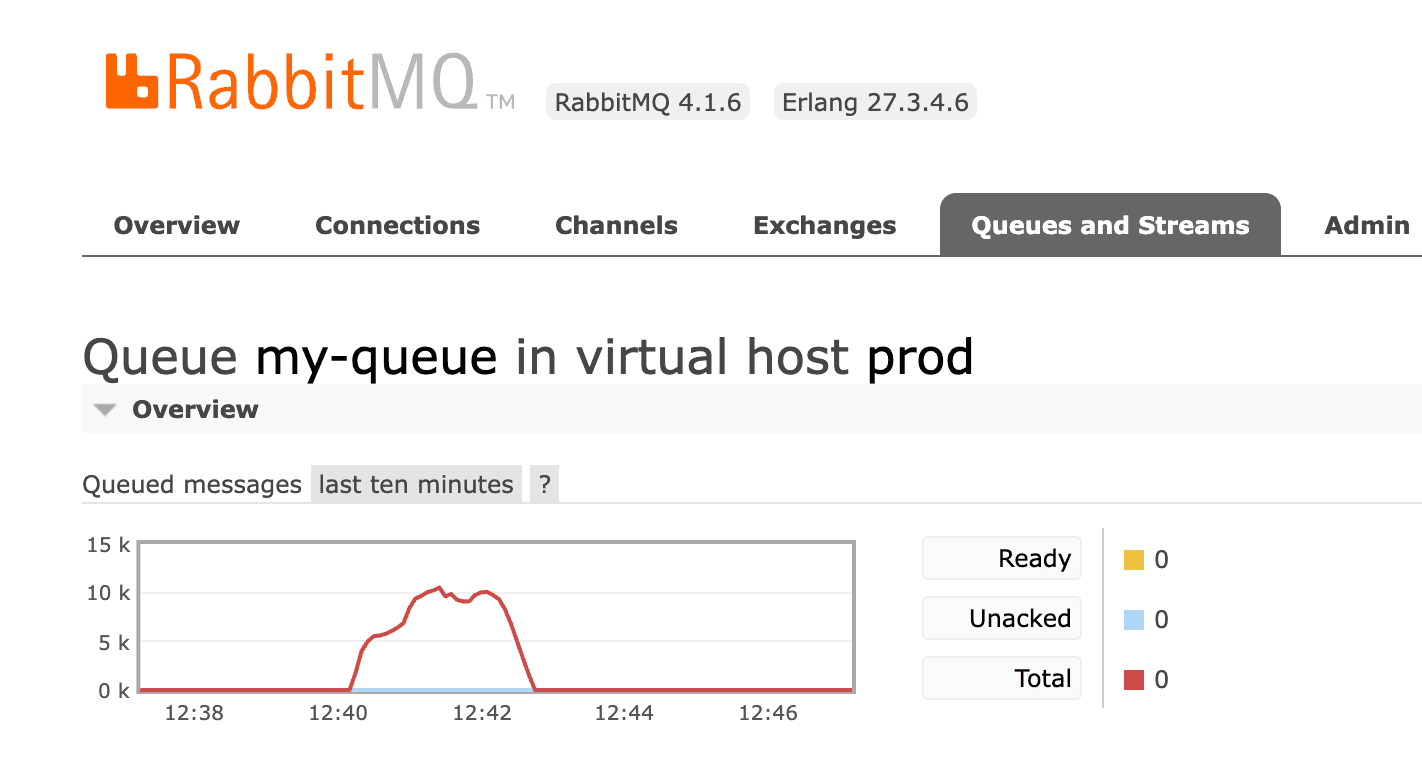

Note that when zooming in and out of the graph, RabbitGUI automatically selects the right granularity based on the window you are currently looking at. You can also over the graph to inspect values of different metrics. You may also visualize it using the built-in management plugin UI but the interaction is very limited:

Messages rate metrics

Message rates metrics are available under the body.message_stats object. Here are some of the most important ones:

• ack: number of messages acknowledged by consumers
• deliver: number of messages delivered to consumers
• deliver_get: number of messages delivered to consumers or retrieved by clients using basic.get
• deliver_no_ack: number of messages delivered to consumers with no-acknowledgment
• get: number of messages retrieved by clients using basic.get
• get_empty: number of basic.get requests that returned no messages
• get_no_ack: number of messages retrieved by clients using basic.get with no-acknowledgment
• redeliver: number of messages redelivered to consumers
• publish: number of messages published to the queue

Just like for the messages metrics, each rate metric has a corresponding *_details field that contains the time series data. For example, body.message_stats.publish_details.samples.

Note that the values for rate metrics are cumulative, meaning they only increase over time. To get the rate of change, you need to look at the rate field in the *_details object. And similarly, the samples array contains cumulative values, so you need to calculate the difference between consecutive samples to get the actual rate of change over time.

Keep in mind that if there is no activity on the queue during the specified time window, the message_stats object or some of its fields might be missing from the response.

Cluster-wide metrics

You can also query cluster-wide metrics using the GET /api/overview endpoint.

curl -u {username}:{password} {hostname}:15672/api/overview

Query params

This endpoint supports the same 4 query parameters as the individual queue metrics endpoint but the valid values are usually different and allow you to go further back in time. For instance, you can usually use:

• *_age=600 and *_incr=5 for a 10-minute window with 5-second increments
• *_age=3600 and *_incr=60 for a 1-hour window with 1-minute increments
• *_age=28800 and *_incr=600 for an 8-hour window with 10-minute increments
• *_age=86400 and *_incr=1800 for a 24-hour window with 30-minute increments

Response body

The object_totals field contains the total number of various objects in the cluster:

• channels: total number of channels
• consumers: total number of consumers
• exchanges: total number of exchanges
• queues: total number of queues
• connections: total number of connections

The queue_totals field contains the total number of messages in all queues:

• messages: total number of messages in all queues
• messages_ready: total number of messages ready to be delivered to consumers across all queues
• messages_unacknowledged: total number of messages delivered to consumers but not yet acknowledged across all queues

Similar to the individual queue metrics, each of these fields has a corresponding *_details field that contains the time series data. For example, body.queue_totals.messages_details.samples contains the number of messages across all queues over time.

Rates can be found in the message_stats object, all with their corresponding *_details fields:

• ack: number of messages acknowledged by consumers
• confirm: number of messages confirmed by publishers
• deliver: number of messages delivered to consumers
• deliver_get: number of messages delivered to consumers or retrieved by clients using basic.get
• deliver_no_ack: number of messages delivered to consumers with no-acknowledgment
• disk_reads: number of messages read from disk
• disk_writes: number of messages written to disk
• drop_unroutable: number of unroutable messages dropped
• get: number of messages retrieved by clients using basic.get
• get_empty: number of basic.get requests that returned no messages
• get_no_ack: number of messages retrieved by clients using basic.get with no-acknowledgment
• publish: number of messages published to the cluster
• redeliver: number of messages redelivered to consumers
• return_unroutable: number of unroutable messages returned to publishers

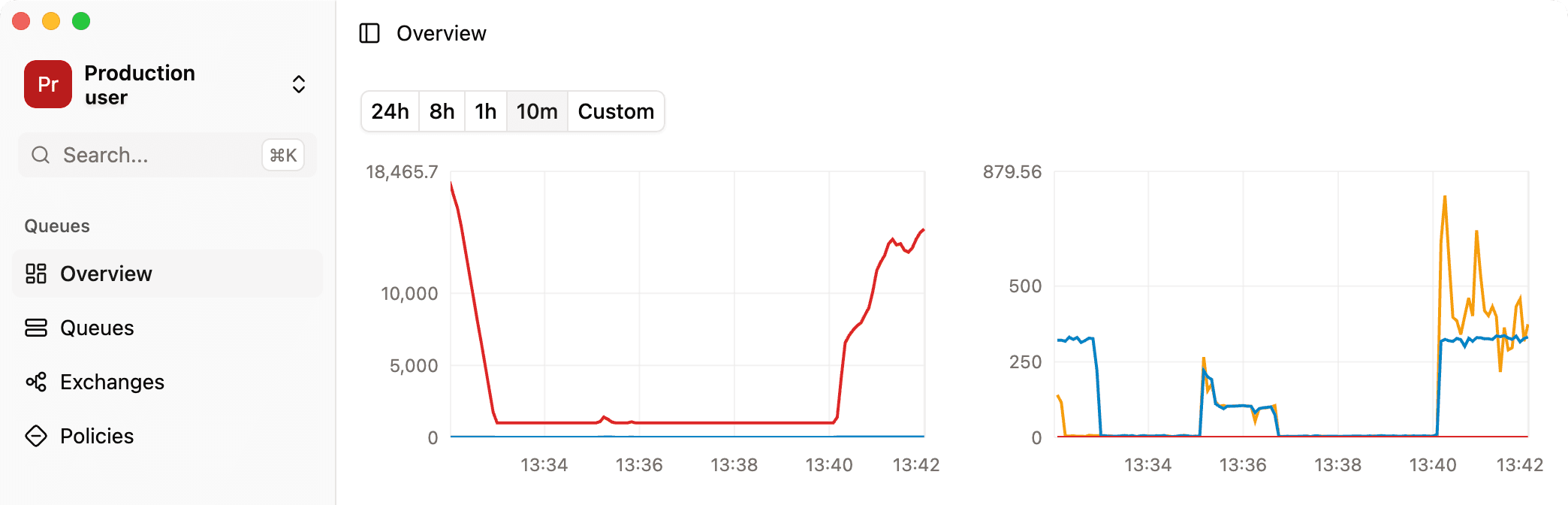

Again, all those data are used by RabbitGUI to display cluster-wide metrics over time from the overview tab where you can zoom in and out of the graphs as needed:
